product description

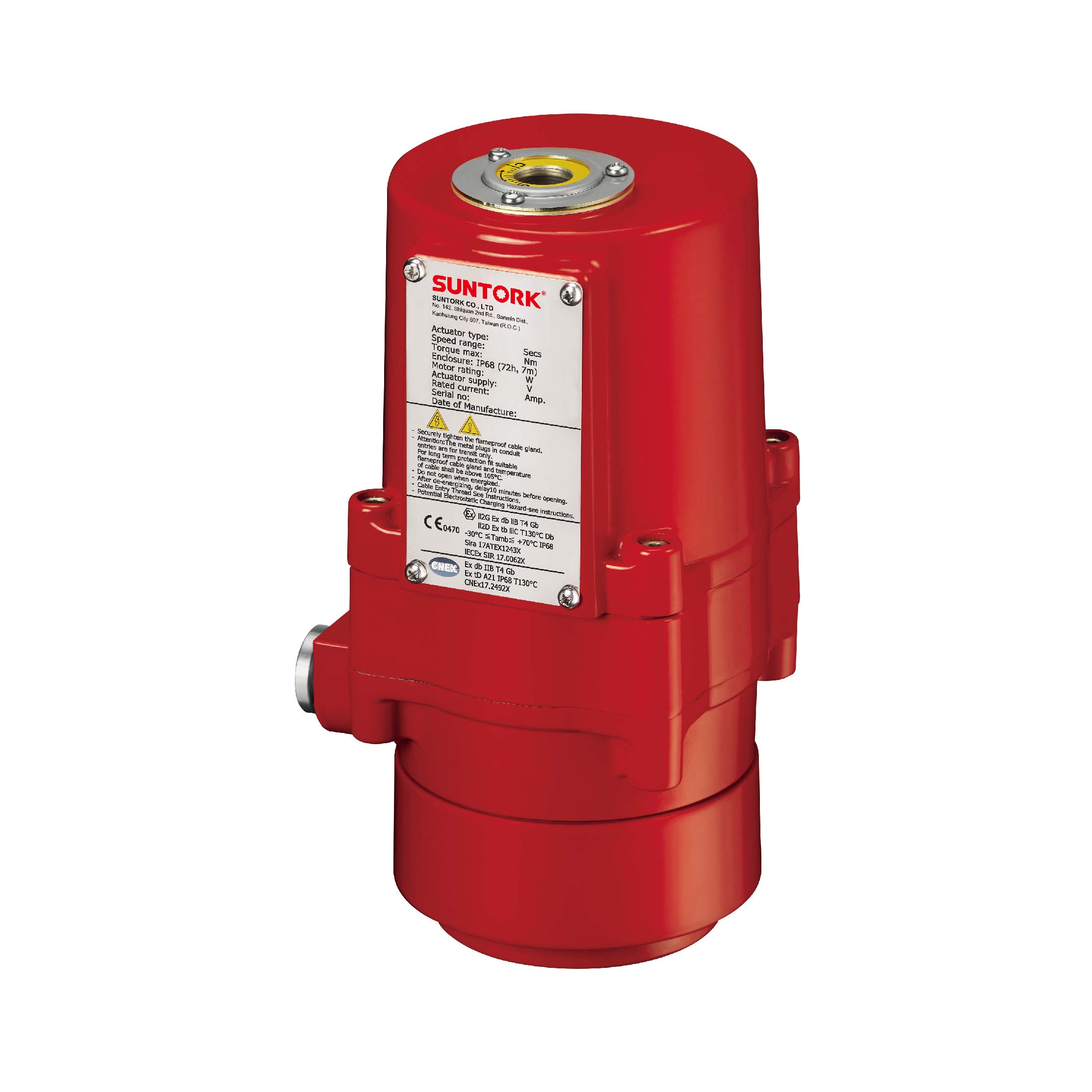

STOME-A

    feature of product

Power：10W
Max Torque：50 N•m/445 in•lb
Speed：27 Sec/90°
Weight：3 kg/7 lb
Manual Override：N/A

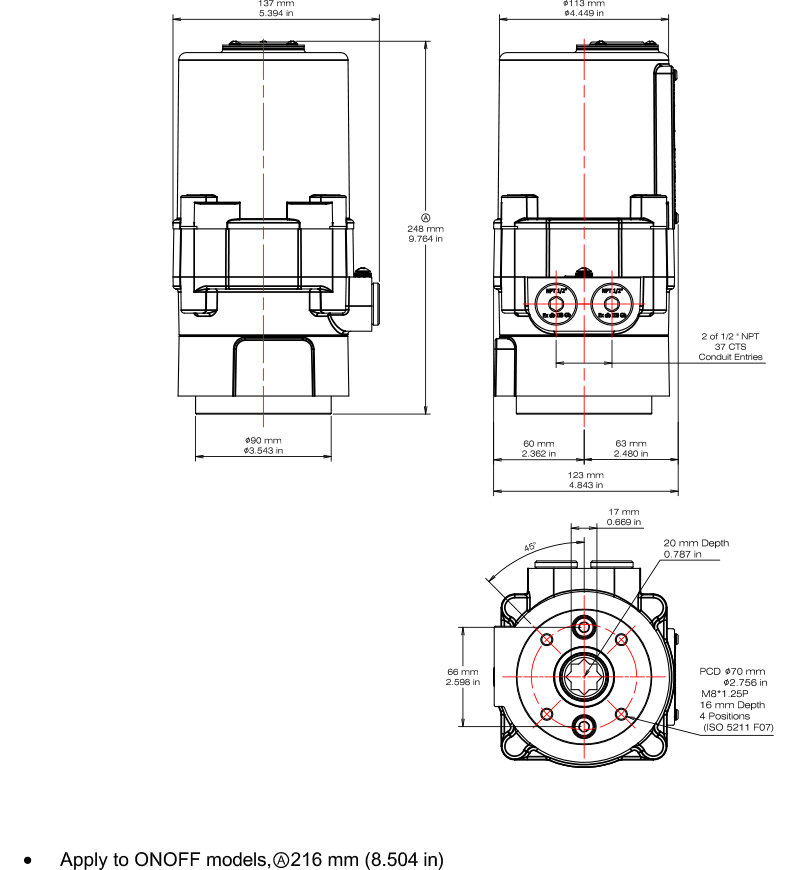

Mounting Flange（ISO 5211）：F07

  • Enclosure conforms to IP68 (7m / 72hrs) with explosion protection.
  • Self-locking gear system.
  • ISO 5211 Mounting Flange.
  • Continuous mechanical position indicator.
  • Built-in thermal protection prevents motor burnout.
  •

Control：

  • Standard：On/Off-Floating
  • Options：Modulating
  •

Conduit entrance :

OME-A、OME-AM、OME-1

  • Standard：1/2” NPT
  • Optional：M20

● CSA
● TS
● IECEx
● ATEX
● CNEX

  • Space heater

    A space heater can increase the internal temperature and keep dry inside actuator to avoid the freezing lubricant and moisture causing actuator failure under low temperature or high humidity. Heater is not recommended if the ambient temperature is above 35℃/95℉. However, when the temperature varies much from day to night or between summer and winter, heater and thermostat (25±5℃/77±9℉) are recommended.

  • Heater thermostat

    The option can switch the heater off when the temperature inside the actuator is over 25℃/77℉.

  • Additional limit switches

    The standard model equips with the 1st & 2nd switches for fully-open and fully-closed. The option consists of the 3rd & 4th auxiliary switches which provide dry contacts for fully-open and fully-closed.



  • Current position transmitter

    The option can provide 4-20mA output signal for position indicator and etc.

    The picture is based on DC 24V

  • Modulating controller

    Actuator can be operated according to input signal and provide the output signal for indicator. Input signal : 4-20mA, 1-5V, 2-10V. Output signal : 4-20mA, 2-10V.

    OM-1、OM-A、OM-AM
    The pictures are based on AC 110/220V

  • Potentiometer unit

    The option can be ordered with On/Off actuators.

    The selection has 1k or 5k ohm resistance values.

    It provides feedback signal for position indicator.
