product description

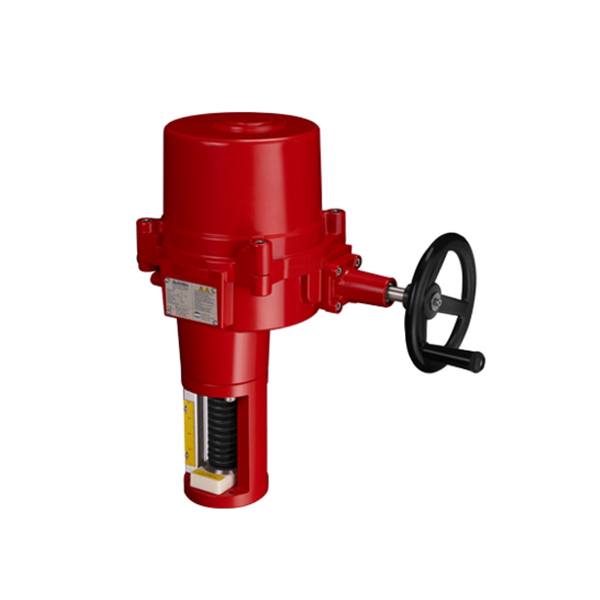

STLE-2000

    feature of product

Thrust：2000 kg/ 4410 lb
Weight：31 kg/ 68 lb
Motor：35w

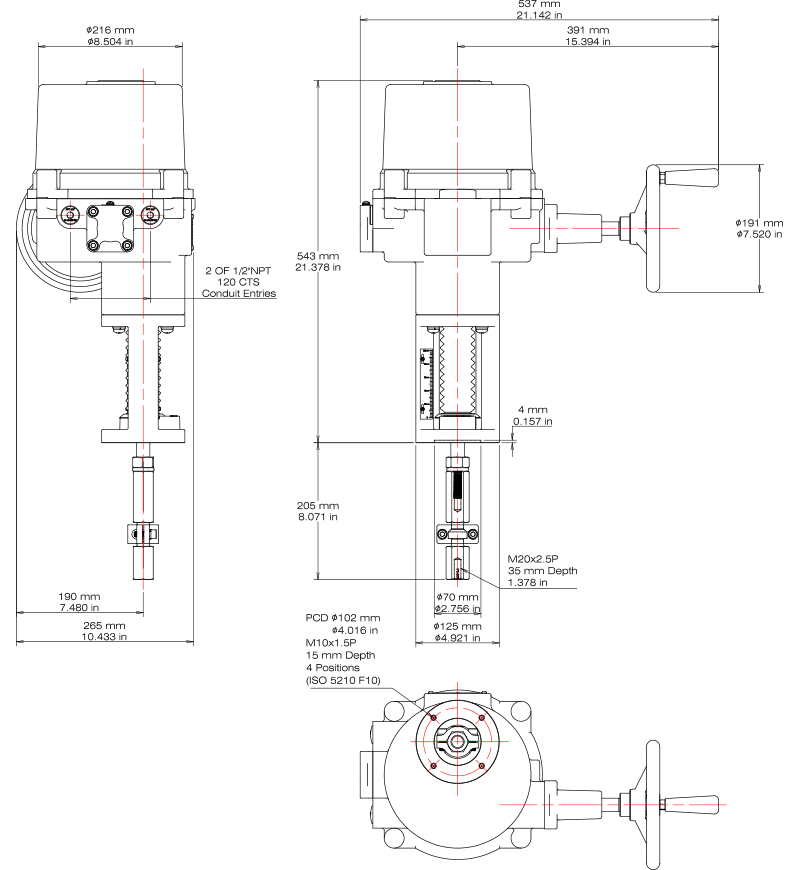

Mounting Flange（ISO 5210): F10
Max. Stroke：100 mm/ 4 inch

  • Enclosure conforms to IP68 (7m / 72 hrs) with explosion protection.
  • Self-locking drive system.
  • DC motor equipped.
  • External stem position indicator.
  • Low-power consumption.
  • Manual operation can be applied in case of power outage.
  • Built-in thermal protection prevents motor burnout.
  •

Control：

  • Standard：Modulating
  • Options：On/Off-Floating
  •

Conduit entrance :

  • Standard: 1/2 ” NPT
  • Optional: 3/4” NPT, M20, M25

● TS
● IECEx
● ATEX
● CNEX

  • Space heater

    A space heater can increase the internal temperature and keep dry inside actuator to avoid the freezing lubricant and moisture causing actuator failure under low temperature or high humidity. Heater is not recommended if the ambient temperature is above 35 degrees℃ (95 degrees℉). However, when the temperature varies much from day to night or between summer and winter, heater and thermostat (25±5 degrees℃ / 77±41 degrees℉) are recommended.

  • Heater thermostat

    The option can switch the heater off when the temperature inside the actuator is over 25°C / 77°F.

  • Floating controller

    An external switch is applied to provide either two-position or floating control to the actuator.

    Floating（LE250~LE500）
    The picture is based on AC 110/220V.



  • Floating controller

    An external switch is applied to provide either two-position or floating control to the actuator.

    Floating（LE1000~LE2000）
    The picture is based on AC 110/220V.
