product description

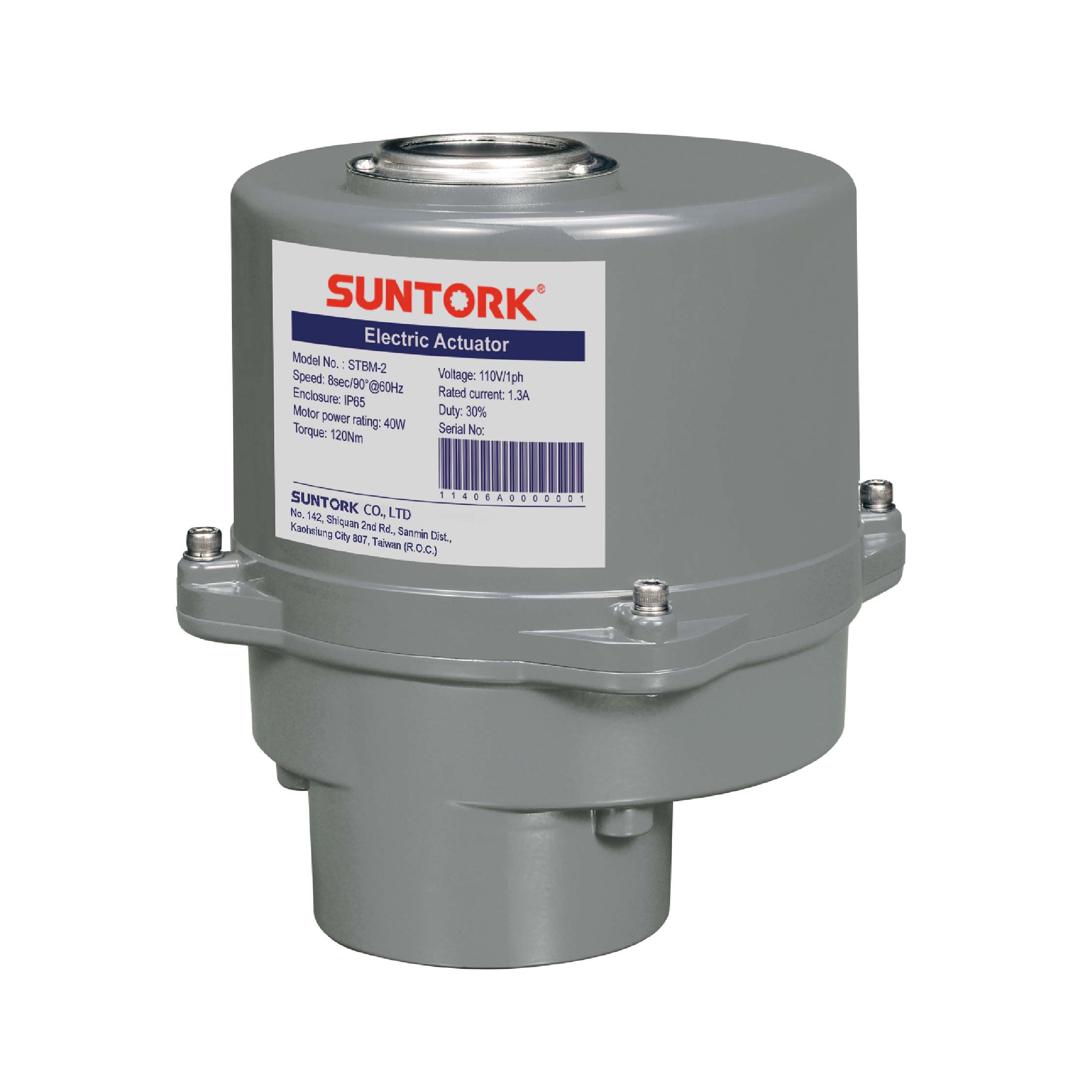

STBM-2

STBM-2

    feature of product

Power：40W
Max Torque：120 N‧m/1065 in‧lb
Speed：9 Sec/90°
Weight：5.5 kg/13 lb
Manual Override：N/A

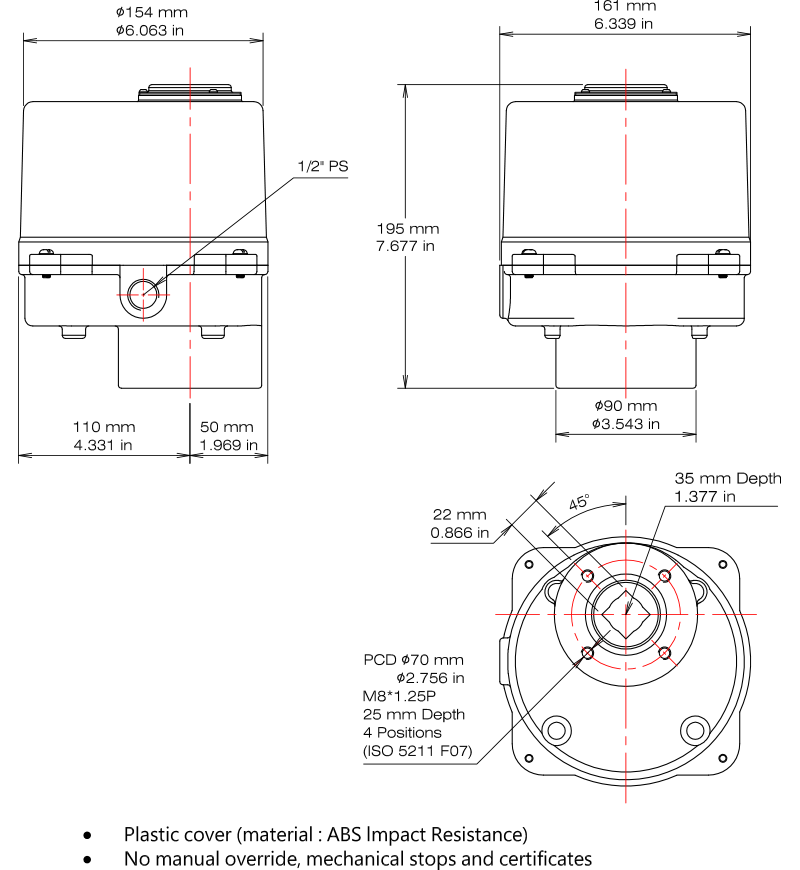

Mounting Flange（ISO 5211）：F07

Enclosure :

  • IP65 : Water-proof and dust-proof enclosure.
  • Material : Plastic cover (material: ABS Impact Resistance)
  •

Motor :

  • F insulation class.
  • Built-in thermal protection prevents motor burning out.

AC motor：125±5℃/257±9℉



Duty Cycle :

  • BM-2：30％ duty cycle
  •

Working Conditions :

  • Ambient temperature：-30℃ to +65℃ / -22℉ to +149℉
  • The humidity：30％ to 95％
  •

Position Indicator :

  • All models have continuous mechanism position indicator on the top of actuator cover.
  •

Gear Train :

  • Gear trains have been already lubricated sufficiently with anti-high temperature lubricant at the factory.
  •

Conduit entrance :

  • Standard : 1/2" PS
  • Optional :  1/2”NPT or M20
  •

Various voltage :

  • AC 220/380/440V, 3-Phase
  • AC 110/220V, 1-Phase
  •

Working angle :

  • Standard : 0-90°

● China RoHS
● RoHS
● REACH

  • Space heater

    A space heater can increase the internal temperature and keep dry inside actuator to avoid the freezing lubricant and moisture causing actuator failure under low temperature or high humidity. Heater is not recommended if the ambient temperature is above 35℃/95℉. However, when the temperature varies much from day to night or between summer and winter, heater and thermostat (25±5℃/77±9℉) are recommended.

  • Heater thermostat

    The option can switch the heater off when the temperature inside the actuator is over 25℃/77℉.

  • Additional limit switches

    The standard model equips with the 1st & 2nd switches for fully-open and fully-closed. The option consists of the 3rd & 4th auxiliary switches which provide dry contacts for fully-open and fully-closed.
